ShowSwitch™ Resource Library

    ESL’s ShowSwitch Online Catalog contains product information such as spec sheets and product selection information.

    ESL’s standard specifications are a resource to assist engineers during the planning and design stages of a project.

    Company Switch Standard Specs (PDF)
    Company Switch Standard Specs (DOC)
    (revised as of 04/04/12)

    ESL’s Company Switch Brochure includes detailed product information, including connection diagrams, product selection tools, and industry applications.

    ESL’s product selection tool is designed to guide customers in creating a custom catalog number that matches exact specifications.
    Company Switch Product Selection Form (PDF)

    The Company Switch Photo Gallery includes a variety of images demonstrating ESL’s Company Switch applications.

    ShowSwitch-logo

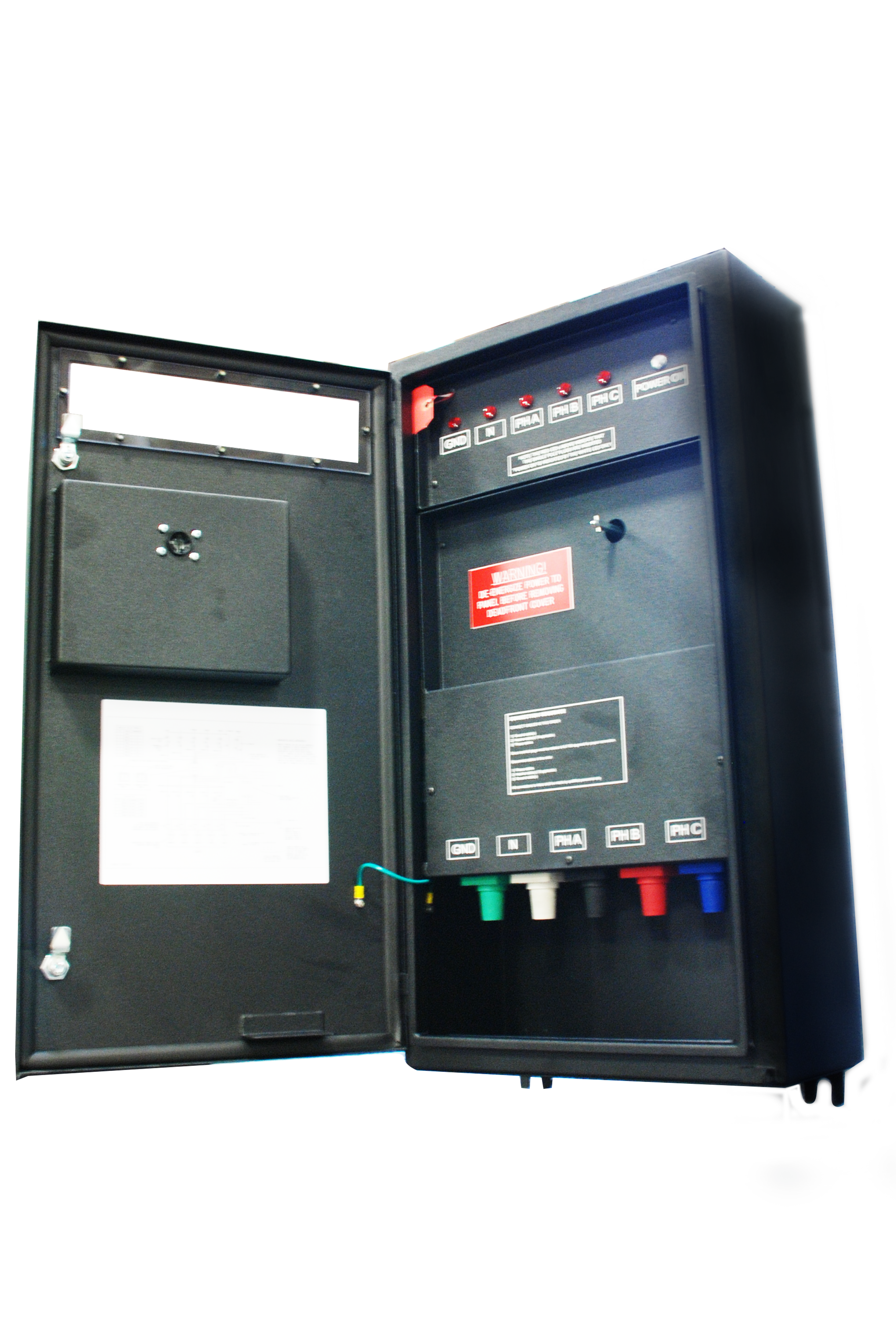

ShowSwitch™ – Company Switch Features

Company Switch Standard Features:

  • Safety-interlocked Door: Prevents making or breaking under load
  • Recessed Operator Handle: Eliminates obstruction in narrow passages and protects the
    handle from being damaged
  • Color Coded Cam-style Receptacles: Safe, secure and simple plug & play connection
  • Indicator Lights: Illuminate when individual cam-style connectors are mated and circuit
    breaker is on
  • Type 1 Powder-coated Matte Black Enclosure: Type 3R also available in lighter colors for outdoor applications
  • Padlockable Door: Prevents unauthorized entry
  • UL and cUL Listed Assembly

Company Switch Optional Features:

  • 100% rated circuit breaker
  • Type 3R stainless steel enclosure
  • Reverse gender neutral & ground
  • Flush mount style enclosure
  • Digital ammeter or multimeter
  • Various colors & textures
  • Various termination connections
  • Various ground & neutral configurations
  • POSI-LOK™ Panel* for cam connections
  • Pin & Sleeve style theatre outlet
*POSI-LOK™ is a trademark of Cooper Crouse-Hinds®
Made in USA
