TripleSwitch™ – Generator Load Bank Testing & Portable Generator Connection Features

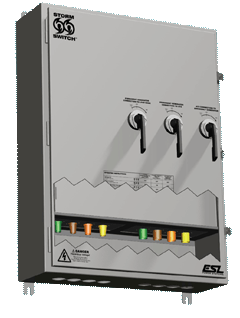

Backup generator connection

  • Interlocking mechanism prevents cross-connecting power sources
  • Safety-interlocked door & dead front panel
  • Utility and generator disconnects
  • 400A rated color-coded cam-style receptacles for easy
    back-up generator (male) & load bank connection (female)
  • Type 3R powder-coated galvanneal steel enclosure
    (stainless steel & colors optional)
  • Hinged, padlockable access doors with door stops
  • Hinged lower plate secures cord entries when not in use
  • 3-pole circuit breakers standard (4-pole circuit breakers optional)
  • UL /cUL 1008 Listed up to 3000A
  • 2017 NEC 700.3 (F) compliant

TripleSwitch™ Optional Features

  • Phase monitor
  • Utility ON indicator (unit mounted or remote mounted)
  • Terminal strip (for devices like remote generator start, remote
    monitoring)
  • 20A & 30A 125VAC or 240VAC receptacles (for battery chargers,
    heaters)
  • SCADA (Supervisory Control and Data Acquisition to connect to
    a PLC)
  • Leg kits for wall mount units
  • Extended enclosures for bottom-fed wall mount units
Made in USA
