Commercial Ship-to-Shore Power Solutions
ESL Power Systems designs and manufactures commercial ship-to-shore power equipment that delivers safe, durable, and efficient electrical connections for ports around the world. Our solutions support a wide range of vessels including cruise ships, ferries, Ro-Ro vessels, and yachts, ensuring uninterrupted power while docked.

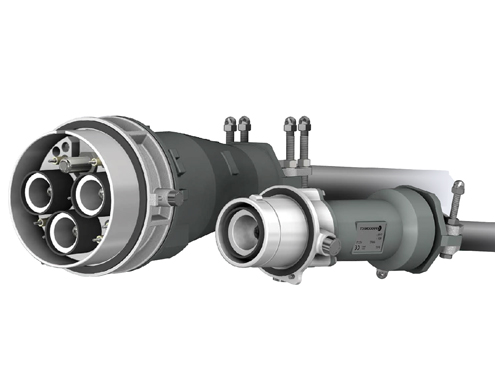

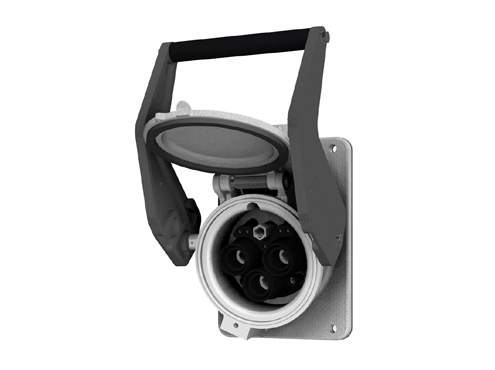

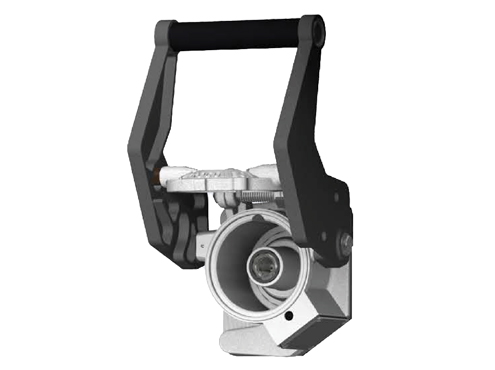

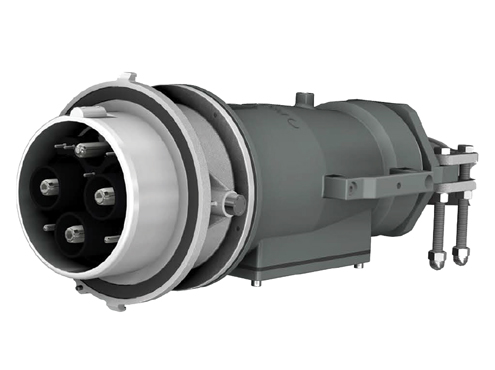

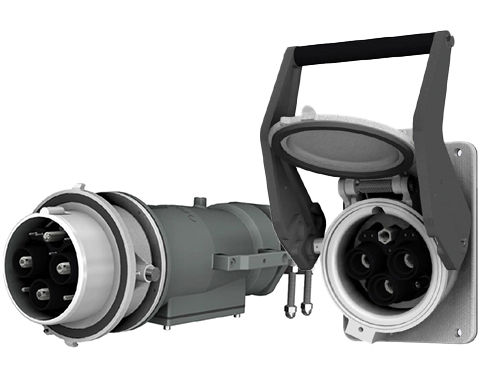

At the heart of ESL’s Commercial Shore Power Solutions are PROCONECT plugs and connectors, engineered specifically for harsh marine environments. These robust, safety-interlocked components provide a secure, watertight, and easy-to-operate interface between ships and shore power sources. The use of PROCONECT’s technology enhances operational safety by minimizing the risk of arcing or incorrect connections, while enabling fast, reliable coupling and decoupling during vessel turnaround.
All ESL shore power products, including those equipped with PROCONECT receptacles, meet stringent IEC/IEEE 80005 international standards and contribute to the global effort toward greener, cleaner port operations by supporting electrification and the reduction of in-port emissions.

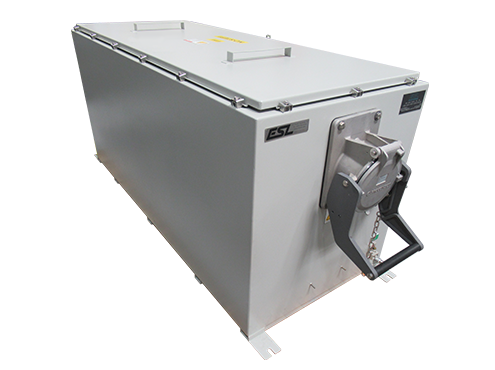

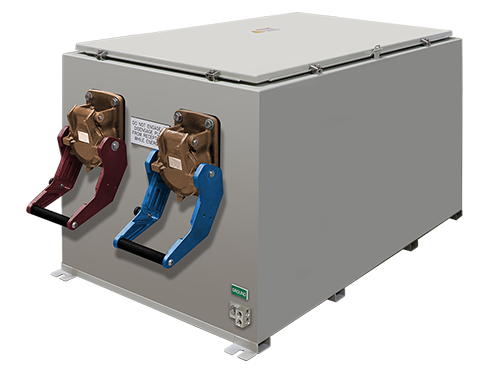

Highlighted Commercial Port Solution Features:
- 12GA Type 304 stainless steel Type 4X, powder coated enclosure
- Up to 320A 7.2kV shore power receptacles for container ships
- Up to 500A 12kV shore power receptacles for cruise ships
- Earthing switch
- Fiber optic junction box
- Kirk key mechanical interlock
- Trapped key interlock
- Heating element
Additional Commercial Marina Solution Features:
- 200A 480VAC safety-interlocked outlets
- 125A 480VAC safety-interlocked outlets
- 63A 480VAC safety-interlocked outlets
- 50A 125/250VAC twist-lock receptacles
- 30A 125VAC twist-lock receptacles
- 20A 125VAC straight blade receptacles
- 250W anti-condensation heater
Discover how Commercial Ship to Shore power solutions supports greener, more efficient maritime operations.
Download the brochure for PROCONECT plug and connector options along with ESL ship to shore solutions.
