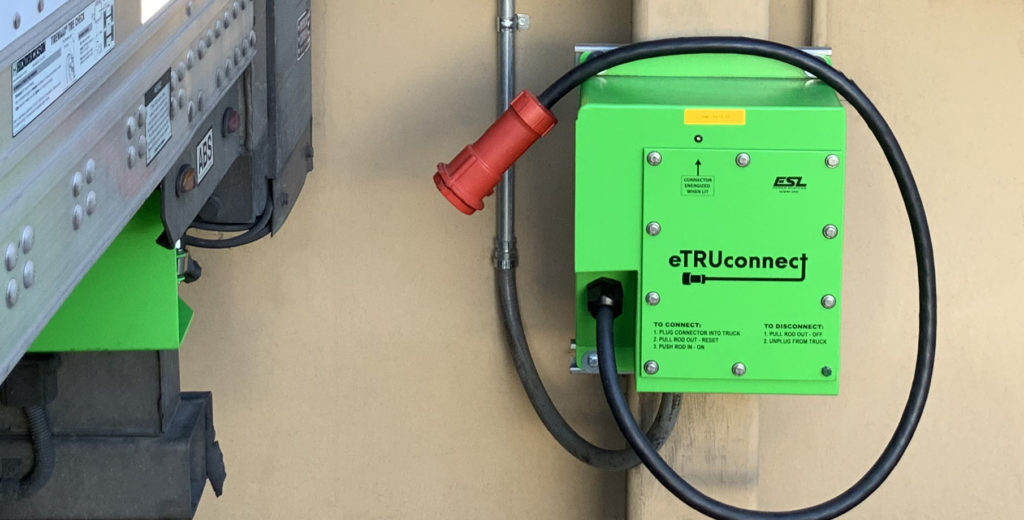

eTRUconnect® PS Series

30A 480VAC
eTRUconnect V2 Power Station

More Info

PS Series TRU Docking Station
(Daisy-Chain Capable)

ESL offers refrigerated truck trailer shore power with the lowest cost of ownership in the industry using non-proprietary pin & sleeve connectors.

ESL’s eTRUconnect® V2 PS Series provides safe utility shore power to electric or hybrid refrigerated units on truck trailers with a smaller footprint, easier access and simplified operation.

Our PS Series TRU Docking Stations are UL Listed safety-interlocked power stations with branch circuit protection. The PS Series is supplied with the power cord and safety-interlocked connector permanently attached to the power station.

eTRUconnect V2 PS Series Features:

  • UL Listed connection sensing device embedded in ESL’s female connector prevents “making” or “breaking” electrical connection under load
  • Connector can only be energized when properly mated to truck inlet
  • High visibility LED Power “On” indicating light
  • Reduced foot print (narrower enclosure)
  • Molded case circuit breaker provides overload and short circuit protection (various AIC ratings available)
  • Two “drive-off” features ensure safety and minimize equipment damage at the loading dock and at the truck
  • Durable type 3R powder-coated steel enclosure (stainless steel optional)

PS Series configurations include:

  • 30A 480VAC, 4-pin 3-wire pin & sleeve (standard IEC 60309 pin & sleeve female connector)
  • 50A 240VAC, 4-pin 3-wire pin & sleeve connector
  • Customized cord lengths (5’ to 70’)

PS Series Dual TRU Docking Station (Daisy-Chain Capable)

ESL offers the Dual eTRUconnect Power Station which is designed for truck yards where the eTRUconnect can be mounted to a pedestal kit or pole. This provides access to multiple docking locations while powering from a single unit. Optional power distribution blocks allow up to (2) two Dual eTRUconnect units to be daisy-chained from a single circuit.

60A 480VAC
Dual eTRUconnect Power Station

Dual TRU Docking Station Features:

  • UL Listed 2-gang power station with safety-interlocked module and custom length power cord
  • Actuator rod allows user to turn on/off and reset tripped breaker
  • UL Listed 30A 3P circuit breakers rated 35kAIC @ 480VAC provides short circuit & overcurrent protection to
    each connector
  • Each cord includes female connector with integral sensor to prove loop is complete before cord can be energized; system “trips” if proving loop is broken
  • Cords have break-away provisions enabling a technician to re-connect a cord after unintentional “drive-off” while still plugged in
  • Ultra-bright red LEDs indicate female connector is energized
  • Type 3R enclosure manufactured from 14GA seam-welded steel (powder-coated texture light green)
  • Power distribution block allows up to (2) eTRUconnect dual units to be daisy-chained from a single circuit (bottom conduit entry/exit only)

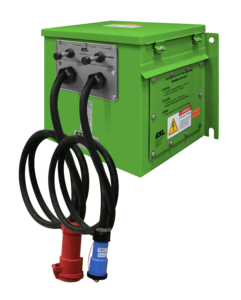

Dual Voltage eTRUconnect® PS Series

15KVA 480:240 Autotransformer

480:240VAC Wall Mounted
Step up / Step Down Transformer

Dual Voltage Transformer Features:

  • 3-phase self contained, wall-mounted unit; safely connects 30A 480VAC or 30A 240VAC TRUs
  • Allows either 480VAC or 240VAC connector to be energized at one time
  • Connectors are safety-interlocked preventing making or breaking under load
  • Each connector is protected by a molded case circuit breaker
