Container and Cruise Ships
Powering Cleaner, More Efficient Marine Operation
ESL’s container and cruise ship shore power solutions provide innovative, safety-interlocked, marine-grade
connections for cruise ships, ferries, ro-ro vessels, commercial ports, and yacht marinas. Designed to
meet IEC/IEEE 80005 High Voltage Shore Connection (HVSC) standards, ESL offers customized solutions to
ensure reliable, high-quality power in demanding marine environments.

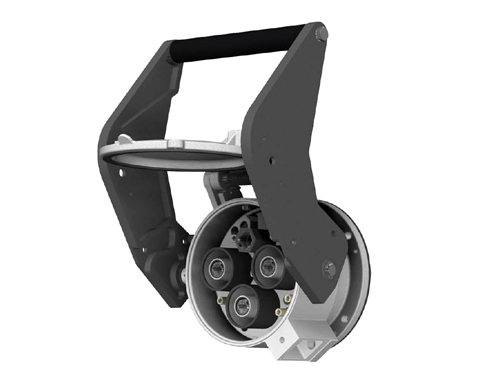

ESL’s shore power units with PROCONECT plugs and connectors benefit cruise and container vessels with more efficient maritime operations
by providing safe, high-quality power connections that reduce environmental impact and enhance port
efficiency worldwide.
Container Vessel Shore Power Outlet Assembly Features:
- 304 stainless steel Type NEMA 4X, powder coated enclosure
- Two 7.2kV 320A push-pull receptacles
- Kirk key mechanical interlock
- Fiber optic junction box
- Heating element

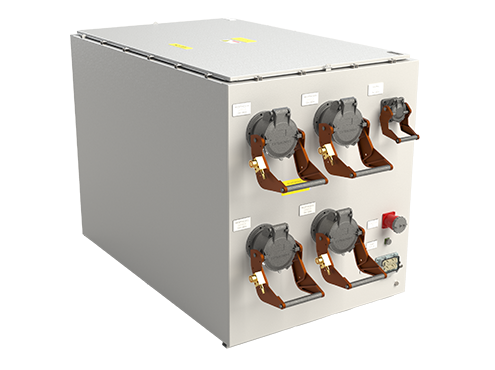

Cruise Vessel Shore Power Outlet Assembly Features:
- 304 stainless steel Type NEMA 4X, powder coated enclosure
- 480VAC, 60Hz, 30A safety-interlocked auxiliary power receptacle
- Four 12kV 500A 3-phase push-pull receptacles
- 7.2kV 320A neutral push-pull receptacle
- High density input/output receptacle
- CAN Bus receptacle
- Heating element
Need a Custom Shore Power Solution?
Contact ESL for innovative, marine-grade equipment tailored to your port or vessel needs.
